Voltage Drop Fuse Chart
Voltage Drop Fuse Chart - Web this chart shows the voltage drop in millivolts (mv) across various colored fuses from cartridge styles ranging in amperage from 20 to 100 amps, as the circuit current. Web the document shows a chart measuring the voltage drop in millivolts (mv) across different colored maxi fuses as the circuit current increases from 0.1 to 9 amps. Web the following chart is used to determine the amperage across a circuit by measuring the voltage drop across the fuse and comparing it against the fuse rating. Mv 2 amp 3 amp 4 amp 5 amp 7.5 amp. The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. Web here is the chart for all 4 fuse design types. Web circuit current across fuse (milliamps) fuse color. Web this chart shows the voltage drop in millivolts (mv) across various mini fuses at different circuit currents from 0.1 to 8.2 milliamps (ma). This article features the symptoms of voltage drop, basic procedures and. 1 amp 2 amp 3 amp 4 amp 5 amp 7.5 amp 10 amp 15 amp 20 amp 25 amp 30 amp 35 amp 40 amp fuse rating : (mini, maxi, standard and cartridge) hth A fuse has a small resistance and the current flowing. Usually this is not a problem in circuits within a house, but may become an issue. Web this chart shows the voltage drop in millivolts (mv) across various colored fuses from cartridge styles ranging in amperage from 20 to 100 amps, as the circuit current. Usually this is not a problem in circuits within a house, but. The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. 1 amp 2 amp 3 amp 4 amp 5 amp 7.5 amp 10 amp 15 amp 20 amp 25 amp 30 amp 35 amp 40 amp fuse rating : Web the document provides a chart measuring voltage drop (in millivolts) across standard fuses of varying amperage ratings and colors as circuit current increases from 0.1 to 6.3. Web this chart shows the voltage drop in millivolts (mv) across various mini fuses at different circuit currents from 0.1 to 8.2 milliamps (ma). The fuses range in size from 2 to 30. The fuses range in size from 2 to 30. Web this chart shows the voltage drop in millivolts (mv) across various colored fuses from cartridge styles ranging in amperage from 20 to 100 amps, as the circuit current. Web the document provides a chart measuring voltage drop (in millivolts) across standard fuses of varying amperage ratings and colors as circuit. Web here is the chart for all 4 fuse design types. Usually this is not a problem in circuits within a house, but may become an issue. The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. Web the document shows a chart measuring the voltage drop in millivolts (mv) across different colored. The fuses range in size from 2 to 30. Web voltage drop becomes important when the length of a run of wire or cable becomes very long. The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. Web this chart shows the voltage drop in millivolts (mv) across various colored fuses from cartridge. Put the meter in the millivolts range and place the probes across each fuse as illustrated below. Multiply distance (length in feet of one wire) by the current (expressed in amps) by the figure shown in table for the kind of current and the size of. The voltage rating of the fuse must be equal to, or greater than, the. Multiply distance (length in feet of one wire) by the current (expressed in amps) by the figure shown in table for the kind of current and the size of. Web here is the chart for all 4 fuse design types. Web how to figure volt loss. Voltage drop becomes important when the length of a run of wire or cable. Web check each fuse in the vehicle with a voltage drop. Voltage drop becomes important when the length of a run of wire or cable becomes very long. For exceptions, see voltage rating. Web the document provides a chart measuring voltage drop (in millivolts) across standard fuses of varying amperage ratings and colors as circuit current increases from 0.1 to. A fuse has a small resistance and the current flowing. Usually this is not a problem in circuits within a house, but may become an issue. Web here is the chart for all 4 fuse design types. 1 amp 2 amp 3 amp 4 amp 5 amp 7.5 amp 10 amp 15 amp 20 amp 25 amp 30 amp 35. Usually this is not a problem in circuits within a house, but may become an issue. Web how to figure volt loss. Usually this is not a problem in circuits within a house, but. Web voltage drop is one of the most common electrical problems showing up in automotive shops today. Multiply distance (length in feet of one wire) by. This article features the symptoms of voltage drop, basic procedures and. Voltage drop becomes important when the length of a run of wire or cable becomes very long. Web voltage drop is one of the most common electrical problems showing up in automotive shops today. Usually this is not a problem in circuits within a house, but. Web this chart. Web this chart shows the voltage drop in millivolts (mv) across various colored fuses from cartridge styles ranging in amperage from 20 to 100 amps, as the circuit current. Web the document provides a chart measuring voltage drop (in millivolts) across standard fuses of varying amperage ratings and colors as circuit current increases from 0.1 to 6.3. A fuse has. Web this chart shows the voltage drop in millivolts (mv) across various colored fuses from cartridge styles ranging in amperage from 20 to 100 amps, as the circuit current. Web the document provides a chart measuring voltage drop (in millivolts) across standard fuses of varying amperage ratings and colors as circuit current increases from 0.1 to 6.3. Web voltage drop becomes important when the length of a run of wire or cable becomes very long. Web this is a chart to calculate the current flowing through a fuse by measuring the voltage across the fuse. Usually this is not a problem in circuits within a house, but may become an issue. Web check each fuse in the vehicle with a voltage drop. The voltage rating of the fuse must be equal to, or greater than, the available circuit voltage. Web this chart shows the voltage drop in millivolts (mv) across various mini fuses at different circuit currents from 0.1 to 8.2 milliamps (ma). This article features the symptoms of voltage drop, basic procedures and. The fuses range in size from 2 to 30. Web circuit current across fuse (milliamps) fuse color. Multiply distance (length in feet of one wire) by the current (expressed in amps) by the figure shown in table for the kind of current and the size of. Web how to figure volt loss. Web here is the chart for all 4 fuse design types. Put the meter in the millivolts range and place the probes across each fuse as illustrated below. Web the following chart is used to determine the amperage across a circuit by measuring the voltage drop across the fuse and comparing it against the fuse rating.Fuse_Voltage_Drop_Chart__Standard_Fuse.pdf Brown Fuse (Electrical)
Fuse Voltage Drop Chart Mini Fusep PDF
Fuse Voltage Drop Chart Mini Fuse Pdf Chart Walls
Power Probe Fuse Voltage Drop Chart A Comprehensive Guide
Fuse Voltage Drop Chart Cartridge Fuse PDF Fuse (Electrical
fuse voltage drop chart
Power Probe Fuse Voltage Drop Chart A Comprehensive Guide
Fuse Voltage Drop Chart Standard Fuse
Standard ATC Fuse Voltage Drop Chart PDF

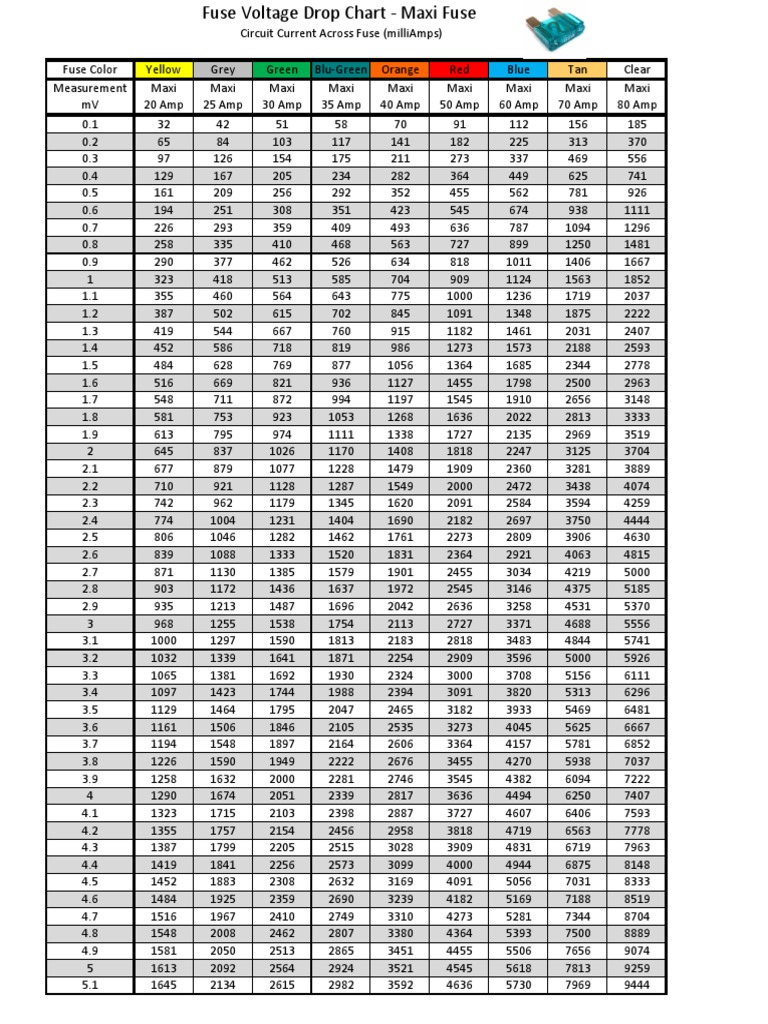

Fuse_Voltage_Drop_Chart__Maxi_Fuse.pdf Fuse (Electrical) Electricity
Web The Document Shows A Chart Measuring The Voltage Drop In Millivolts (Mv) Across Different Colored Maxi Fuses As The Circuit Current Increases From 0.1 To 9 Amps.
Web The Document Shows A Chart Measuring The Voltage Drop In Millivolts (Mv) Across Different Colored Maxi Fuses As The Circuit Current Increases From 0.1 To 9 Amps.
Mv 2 Amp 3 Amp 4 Amp 5 Amp 7.5 Amp.
A Fuse Has A Small Resistance And The Current Flowing.
